Chinese Suppliers Zeolite Desiccant 3A Molecular Sieves

We have always paid attention to the quality of our regenerative heat drying, Alumina abrasion resistant ceramics, automatic instrument drying and the construction of quality management system. We look for every opportunity to publicly celebrate the achievements of individuals and teams, and to congratulate those who have contributed to our company. We take 'Building an excellent team and creating first-class quality' as our business philosophy to provide customers with the best solution. Through continuous efforts, we have accumulated rich commodity experience and market information, closely combined with the needs of the market and ensured the best advantage to enter the market sales. We firmly believe that quality lays the foundation and integrity creates the future. We are willing to work with you to create a better future.

Product Introdution

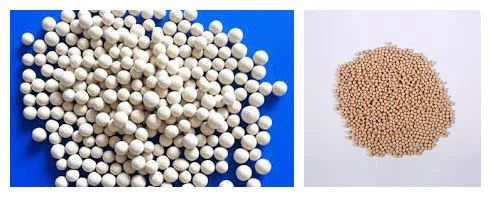

The 3A kind is an alkali metal silicoaluminate with a pore diameter of 3A. It is mainly used for water adsorption, and it does not adsorb any molecule with a diameter greater than 3A.According to the characteristics of industrial application, the zeolite has the characteristics of fast adsorption, fast regeneration times, large crushing strength, strong anti-pollution ability, etc., which improves the utilization efficiency of zeolite and extends the service life of zeolite. It is a desiccant necessary for deep drying, refining and polymerization of gas and liquid phase in petroleum and chemical industry. It can be used for drying all kinds of liquid (such as ethanol), air, refrigerant, natural gas, methane, unsaturated hydrocarbon, pyrolysis gas, ethylene, acetylene, propylene, butadiene, etc.

Product Index

Item	Unit	Bead		Strip
Diameter	mm	1.6-2.5	3-5	1/16Inch	1/8Inch
Static Water Adsorption	≥mg/g	210	210	205	205
Carbon Dioxide Adsorption	≤%wt	1.5	1.5	1.5	1.5
Bulk Density	≥g/ml	0.70	0.68	0.68	0.66
Crushing Strength	≥N	30	80	30	80
Abrasion Loss	≤%wt	0.1	0.1	0.3	0.3
Package Moisture	≤%wt	1.0	1.0	1.0	1.0

Storage Conditions

Store at room temperature, indoor with relative humidity not more than 90%; avoid water, acid, alkali, isolated air, sealed storage.

Product Certification

Dynamic adsorption of 3A zeolite molecular sieve

In general, the most polar ones are adsorbed first

H2O＞CmHn＞CO2

It has strong affinity for unsaturated molecules,

Alkynes>alkenes>alkanes

Second, the adsorption process

Adsorption equilibrium: Under certain T and P, when the desorption rate and adsorption rate are equal, the adsorption equilibrium is reached. that is saturated.

Adsorption process is carried out: mass transfer zone, equilibrium zone, protection zone. (CO2 outlet concentration of air separation adsorption tower is less than 1ppm)

Conversion point: when the leading edge of the mass transfer zone begins to reach the outlet section of the adsorber, the point where the fluid flows out of the adsorbent layer and the adsorbed components increase significantly.

Third, the measurement of adsorption capacity

Static adsorption capacity: the maximum amount that can be adsorbed when the adsorbent per unit mass (volume) reaches the adsorption equilibrium under a certain T and the concentration of the adsorbed component. That is, the ratio of the maximum adsorption amount that the adsorbent can achieve to the amount of adsorbent.

Dynamic adsorption capacity: when the adsorbate just appears after the adsorber, the equilibrium adsorption capacity of the adsorbent per unit mass (volume) in the adsorber. That is, the amount of adsorption when the adsorbent reaches the conversion point. It is usually calculated in terms of turn-over time, which is the time from when the fluid begins to contact the adsorbent layer to the "turn-over point".

The dynamic adsorption capacity is less than 50-70% of the static adsorption capacity

Fourth:Several measures to prolong the service life of molecular sieve:

①　The bed should be prevented from being impacted by gas as much as possible. Therefore, when the pressure is flushed and relieved, it is carried out in layers, and the differential pressure interlock is set.

②　The misoperation of the air cooling tower should be avoided to bring water into the adsorption tower or improve the design of the air cooling tower. main problem

③　The air cooling tower uses circulating water, and the PH value of the water is guaranteed to be between 7-8.

Fifth:Several measures for energy saving and consumption reduction of molecular sieve purification system

①　Set the preheater

②　Set up the heat accumulator

③　The steam heater replaces the electric heater. Electric energy belongs to ordered energy with high grade, while thermal energy belongs to disordered energy with low grade.



We attempt for excellence and hope to be the top cooperation team and dominator company for personnel, suppliers and customers, realizes price share and continual marketing for Chinese Suppliers Zeolite Desiccant 3A Molecular Sieves. We are looking forward to receiving your inquiry. We adhere to the tenet of 'Services of Standardization, to Meet Customers' Demands'.

Hot Tags: 3a zeolite molecular sieve, China, manufacturers, suppliers, factory, wholesale, price, Methanol Synthesis Catalyst, 4N Alumina For Glow In Dark Powder, Catalyst Auxiliary for Improving Octane, HPA For Lithium Battery Separator Coating, high adsorption alumina desiccant, HPA For Lithium-Ion Battery Electrodes Separator
